HI510-03

Pipe-Mount Kit for HI510

$121.00

HI510-03 is the pipe mounting hardware kit made for the HI510 universal controller and transmitter.

Complete hardware mounting kit includes bracket, screws, and U-bolts.

Learn More

Thank you for your interest in our products. A representative will contact you within the next business day.

The HI510-03 is a hardware kit to mount the ½ DIN HI510 Universal Controller to a pipe. The HI510-03 includes screws and brackets necessary to affix a mounting plate to the HI510 Universal Controller. U-bolts are provided that can accommodate various sizes of pipe. The bracket can be rotated to mount the HI 510 controller to a pipe with either a horizontal or vertical orientation.

The NEMA 4X rating of the HI510 controller is unaffected by the pipe mounting method. The HI510 has waterproof cable glands for the wiring that terminates within the meter. The HI510 has extractable terminal block for easy termination of the wiring.

Bracket Attachment

Brackets are shown attached to the HI510 universal controller (sold separately).

Four screws with washers are used to attach the bracket to the meter.

The bracket is notched and the U-bolts are used to attach to a pipe.

Pipe Attachment

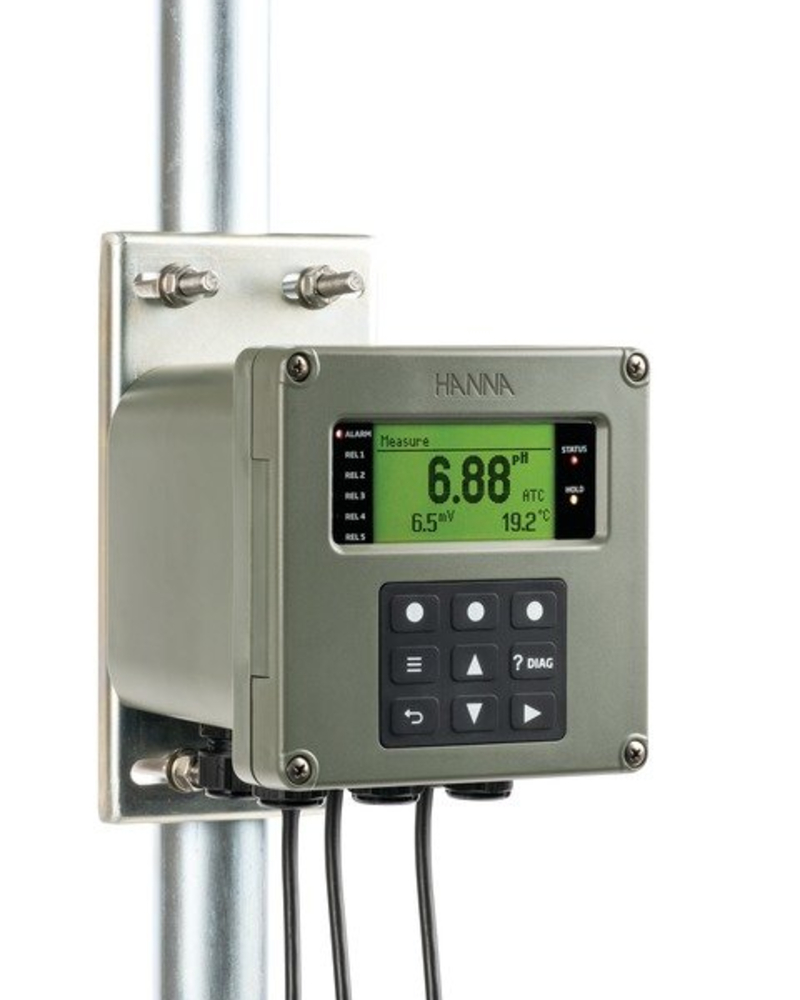

Shown is the HI510 universal controller (sold separately) mounted to a pipe.

Plate attached can be rotated to attach vertically or horizontally.

NEMA 4X waterproof rating of enclosure is not affected by mounting to a pipe.

Resources

Specifications

Specification Name	Detail
sku	HI510-03
Ordering Information	HI510-03 pipe mount hardware kit includes zinc-plated bracket (1), M8 hex nut (4), plain washer for M8 screw (4), spring washer for M8 screw (4), plain washer for M6 screw (4), spring washer for M6 screw (4), M6 x 12 mm screw (DIN7985) (4), and U-bolts (2 each - 1”, 1 ½”, and 2 ½” sizes).
