Direct Soil Measurement pH Portable Meter$528.00

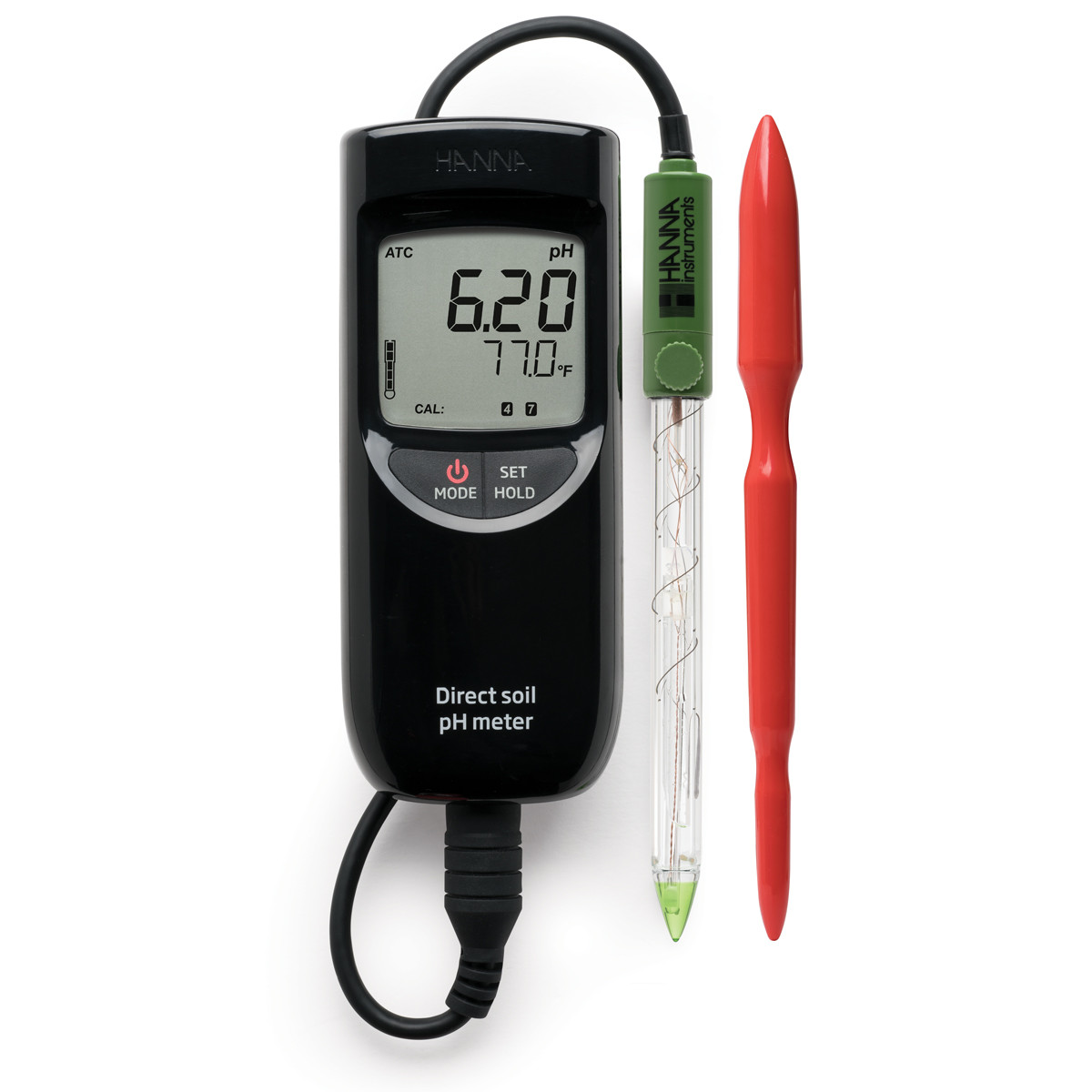

Designed to bring simplicity to pH testing of soil, the HI99121 Direct Soil pH Portable Meter is designed specifically for soil analysis. The specialized probe features a rugged conical tip, open junction design, and a glass body making it ideal for measuring the pH of soil directly or after preparation of a soil slurry with deionized water.
- ±0.02 pH accuracy
- Includes a plastic auger to break through harder soils.
- Specialized for the direct pH measurement of soil.
Thank you for your interest in our products. A representative will contact you within the next business day.
An on-screen indicator provides visual confirmation that your probe is working at its best.
Low Battery Indicator
The included batteries provide 1400 hours of continuous use. When the battery level is below 10%, a warning symbol will blink to indicate low battery condition. When low battery power may affect your results, the meter will shut down to avoid erroneous readings caused by low battery level.
The auto-off feature can be set to shut the meter off at 8 or 60 minutes, or it can be disabled so that the meter continuously stays on. The auto-off feature prolongs battery life for peace-of-mind and energy savings if the meter is accidentally left on.
Built to be Durable
Designed to withstand the knocks, drops, and spills of real life, the new IP67 body ensures top performance in any environment. These meters are protected against dust and water intrusion from any direction.
Made to fit comfortably in your hand for on-the-go testing, the multilevel LCD display provides at-a-glance readings of pH and temperature from any angle and dual button operation streamlines the testing process for any user.
Quick Connect Probe
A Quick Connect DIN connector makes attaching and removing the probe simple and easy. The rubber coating protects the cable and provides a water-tight seal without twisting.
Your measurements require detailed attention; so should your electrode. The HI99121 Direct Soil pH Portable Meter features a replaceable HI12923 pH electrode that has been carefully designed specifically for the pH analysis of soil and soil slurries.
The open junction design reduces clogging from organic materials found in soil for a more stable pH measurement and reduced maintenance.
Conical Glass Tip
The conical shaped tip design allows for penetration into solids, semi solids, and emulsions for the direct measurement of pH in a variety of substrates used in agriculture.
A glass body is easy to clean, is chemically resistant, and quick to reach thermal equilibrium for a faster, more stable measurement. A built-in temperature sensor ensures fast, accurately compensated readings even during sudden temperature fluctuations.
We believe that buying a meter should be simple. Your Direct Soil pH Portable Meter is equipped with everything you need for successful testing right out of the box.
Electrode Cleaning Solution for Soil and Humus Deposits
Your Direct Soil pH Portable Meter comes with cleaning solution that has been engineered to keep your electrode free from debris found in soils. This concentrated combination of detergents cleans your meter quickly and effectively so that your meter stays in optimum condition.
pH 4 & 7 Buffer Sachets
When performing a pH calibration it is important that the correct buffers are used. We include some start buffers to get you going. The single-use sachets are individually sealed so you use fresh buffer each time you calibrate.
Soil Preparation Solution
Using the HI7051M soil preparation solution prior to taking a measurement provides for a more accurate pH reading of soil samples.
A plastic auger is sup‑plied to perforate and loosen the soil prior to measurement. This will prevent scratching the pH sensitive glass on nutrient crystals or small pebbles.
HI99121 Models and Compatible Accessories
Old HI99121 (Left)
- Uses the HI1292D pH probe with DIN Connector
- Compatible with the HI710023 Shockproof Boot'
New HI99121 (Right)
- Uses the HI12923 pH probe with Quick DIN Connector
- Compatible with the HI710028 Shockproof Boot
*The new Quick DIN probe connection is compatible with the old body design, however, the old DIN probe connections are not compatible with the new body design.
Specification Name Detail sku HI99121 pH Range -2.00 to 16.00 pH / -2.0 to 16.0 pH pH Resolution 0.01 pH / 0.1 pH pH Accuracy (@25°C/77°F) ±0.02 pH / ±0.1 pH pH Calibration automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18) mV Range ±825 mV (pH-mV) mV Resolution 4 mV mV Accuracy ±1 mV (pH-mV) Temperature Range -5.0 to 105.0 °C/23.0 to 221.0 °F Temperature Resolution 0.1 °C/0.1 °F Temperature Accuracy (@25°C/77°F) ±0.5 °C up to 60 °C; ±1.0 °C outside ±1.0 °F up to 140 °F; ±2.0 °F outside Temperature Compensation Automatic -5.0 to 105.0 °C/23.0 to 221.0 °F Power Supply 1.5V AAA batteries (3 pcs.) Power Consumption approx. 1400 hours of continuous use Environment 0 to 50°C (32 to 122°F); RH max 100% Dimensions s 154 x 63 x 30 mm (6.1 x 2.5 x 1.2”) Weight 199 g (6.91 oz.) with batteries Ordering Information Each meter is supplied complete with: • HI12923 pH/temperature probe • pH 4.01 & 7.01 Buffer sachet • HI700663 electrode cleaning solution for soil deposits (1 sachet) • HI700664 electrode cleaning solution for humus deposits (1 sachet) • HI7051M soil preparation solution • HI721319 ground auger • 100 mL beaker (1 pc.) • Alkaline batteries: 1.5V AAA (3 pcs.) • Rugged carrying case • Calibration certificate of meter • Calibration certificate of probe • Instruction manual Warranty 2 years Recommended Probe HI12923 glass body, pre‑amplified pH electrode for soil measurement with internal temperature sensor, DIN connector and 1 m (3.3’) cable (included)
