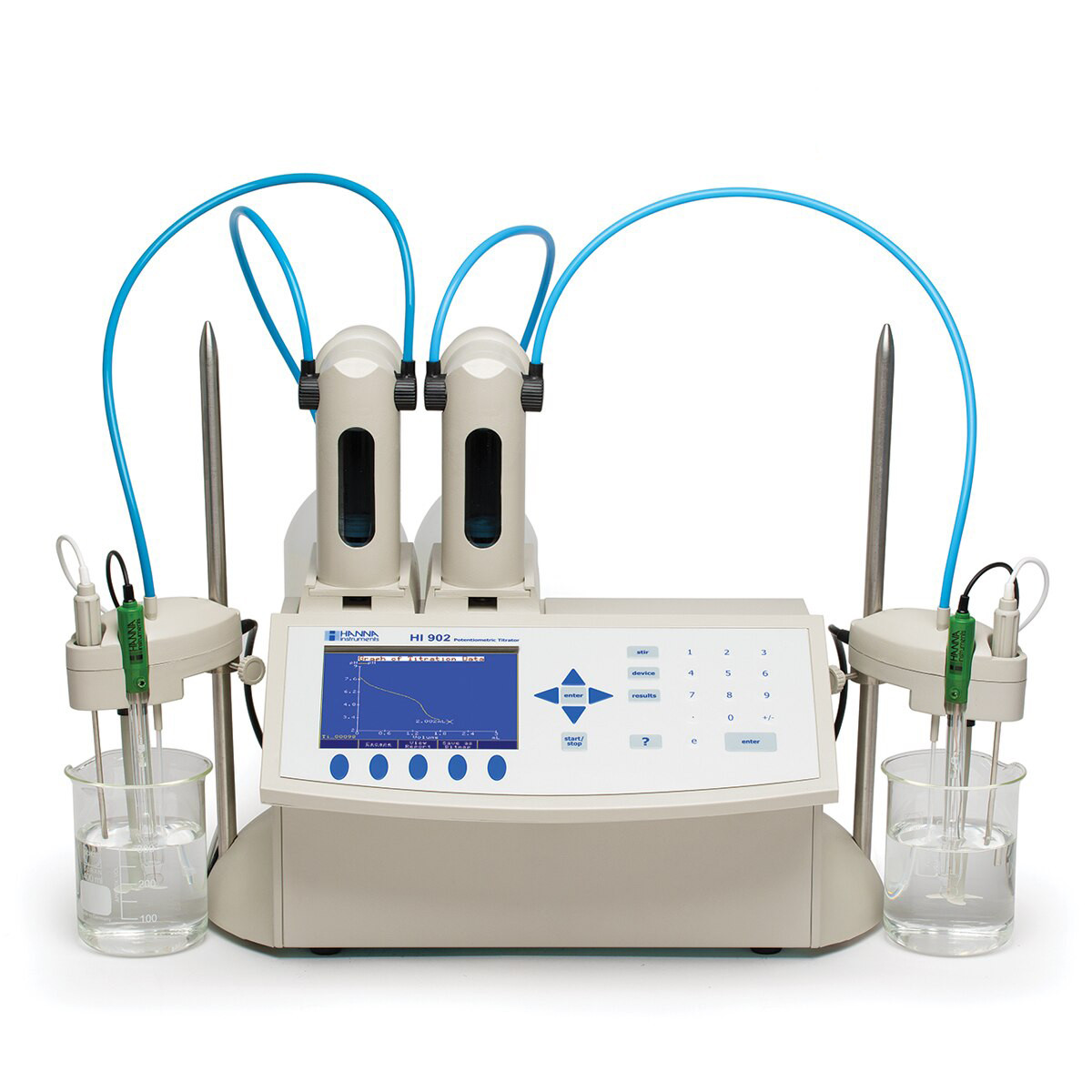

Automatic Potentiometric (pH/mV/ISE) Titration System
The HI902C is an automatic titrator that complements our wide range of products dedicated to efficient and accurate laboratory analysis. The HI902C potentiometric titrator can perform acid/base, redox (ORP), complexometric, precipitation, non-aqueous, argentometric, and ion selective titrations, as well as back titrations and titre determinations. This powerful titrator automatically dispenses the titrant, detects the endpoint, and performs all necessary calculations and graphing. In addition to titration, the HI902C also operates as a fully functional pH, mV/ORP, and ion selective electrode (ISE) meter
Thank you for your interest in our products. A representative will contact you within the next 2 hours.
Enhanced Security Options
Administrative users can set a PIN code on the device protecting against unauthorized access. Titration method options and results are tamper-proof while a non-administrator operates the titrator, ensuring records remain safe, secure, and traceable.
Dynamic Titrant Dosing
The dynamic dosing feature allows for timely and accurate titration results by relating the titrant volume dosed to the mV response from the titration reaction. This provides for larger doses near the beginning of a titration and smaller, more precise doses near the titration endpoint.
Signal Stability Timing
The signal stability feature monitors when the mV response of the titration reaction stabilizes before providing the next titrant dose. This ensures reliable measurement values throughout the length of a titration.
Equivalence Endpoint Detection
Equivalence endpoint detection is critical in applications where fixed endpoints are not specified in standard methods. This endpoint indicates where the mV response from the titration is greatest with respect to the volume of titrant dosed.
Multiple Equivalence Point Detection
The HI902C can detect multiple equivalence points during one titration as specified and required in certain standard methods and applications.
The HI902C offers users the option of linking two methods. This allows for two analyses to be run on the same sample including direct measurements, single endpoint titrations, multiple equivalence point titrations, and back titrations.
Multiple Titration Types
Paired with the right electrode from our sensor line, our potentiometric titrator can perform acid/base, redox (ORP), complexometric, precipitation, non-aqueous, argentometric, and ion-selective titrations, as well as back titrations and titre determinations.
Direct Measurement Functionality
The HI902C performs as a high accuracy pH, ORP, and ion-selective meter that can link, log, and report direct measurements. Users can easily track and manage data without the hassle of manual record keeping.
Burettes & Dosing System
Exchangeable Burette System
With Hanna’s Clip-Lock™ burette feature, it only takes a few seconds to exchange titrants and reagents preventing cross-contamination and saving time.
Multiple Burette Sizes
The HI902C comes standard with a 25 mL burette but may be equipped with a 5 mL, 10 mL, or 50 mL burette. Each burette is constructed with a ground-glass syringe and chemically resistant PTFE plunger.
Precision Dosing Pump
Our unmatched 40,000 step piston-driven pump is capable of dosing extremely small and highly accurate volumes of titrant or reagent.
Chemically Resistant Tubing
Aspiration and dispensing tubes are constructed of durable, chemically resistant PTFE and feature a light-blocking polyurethane outer sleeve to protect light-sensitive reagents.
Automatic Reagent Addition
A second burette may be programmed to volumetrically dispense reagent prior to titration or direct measurement. This helps achieve consistent and accurate results and prevents operator errors such as incorrect volumes or forgetting reagent addition.
Interface & Display
Interactive Color Display
A large, color LCD screen clearly shows the chosen titration method along with results, units, titration volume, temperature, and mV or pH values.
Detailed Titration Graphs
A real-time titration curve can be displayed during each titration; this feature is useful when new methods are tested or when a procedure requires optimization.
Simple & Quick Navigation
Virtual key selections present on the display allow for simple and quick navigation between screens and menus without getting lost in a nest of information.
Data & Storage
Customizable Analysis Reports
Each analysis report is fully customizable so users can ensure they are storing and filing the appropriate data required for their application.
Flexible GLP Management
All necessary GLP (Good Laboratory Practice) information can be recorded with each sample including: sample identification, company and operator name, date, time, electrode ID codes, and calibration information.
Effortless Data Transfer
Data can easily be transferred to a USB flash drive or PC with the Hanna HI900PC application software. The conveniently located port allows for the transfer of titration methods, titration reports, and software upgrades via USB flash drive.
Connectivity & Functionality
HI902C functions as a titrator, pH meter, mV/ORP meter, and ISE meter. Valuable laboratory bench space is saved, and multiple analyses can be performed on one sample.
The titrator offers device support for two analog boards, allowing up to two electrodes, two burettes, and two stirrers to be connected to one unit simultaneously.
Users can print reports directly from the titrator using a parallel port interface. An external monitor and keyboard may be attached for added versatility, as well as an analytical balance for automatic sample mass entry for titrations.
The HI902C works seamlessly with our HI921 Autosampler featuring 16 or 18 sample tray options, automatic tray identification, and automatic beaker detection. Up to three peristaltic pumps for reagent addition and removal can be connected and real-time analysis and sequencing progress is visible on the HI902C display as well as indicated by the LED lights of the Autosampler.
Methods of Analysis
The HI902C can store up to 100 user-defined or standard titration and direct measurement methods. Each method may be modified and optimized for performance based on application and user requirements.
Titration Method Support
Onsite installation, training, and customization are available from one of our Applications or Service experts. Hanna offers continued support for any questions you might have along the way.
Market Specific Methods Packs
Hanna offers titration method packages for various markets including food, beverage, dairy, wine, and more. Ask our Sales Consultants about our library of market-specific titration methods.
Adaptable Standard Methods
Our technical experts can program and optimize standard methods developed by such affiliations as ISO, ASTM, AOAC, AOCS, EPA, and more directly onto your titrator. Ask our Sales Consultants which standard methods are possible with our HI902C system.
Titration Maintenance Agreement
You’ve made a great choice when you go with Hanna for your titration needs. All it needs is a little TLC, and it will serve you well for years.
All titration equipment requires annual maintenance due to the wearable parts and the harsh chemicals, such as sodium hydroxide, required in many titrations. An annual checkup, calibration, and replacement of burette accessories result in a long instrument life, accurate and precise results, and safe operation.
As always, Hanna delivers the quality and expertise you need at an affordable price. The Hanna Titration Maintenance Agreement keeps your instrument in optimal working order and ensures that you stay up-to-date on best testing practices. The agreement includes the following services and perks, which keeps your instrument performing at its best:
- One (1) onsite calibration, performed for you by certified personnel
- One (1) time replacement of wearable parts
- Backup of your titration methods
- Coverage by the Hanna Loaner Program. When you send your titrator in for service or repair, we will give you one of ours to borrow, with your methods loaded, so that you’ll never be without.
- One (1) refresher training by a Hanna expert
- 25% off all services, including your install
- 5% off all Hanna purchases
- Certificate provided to you upon completion
The Hanna titration line enjoys an incredibly low cost of ownership, and the Titration Maintenance Agreement is the cornerstone of that value.
Specification Name Detail sku HI902C pH range -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH pH Resolution 0.1; 0.01; 0.001 pH pH Accuracy (@25ºC/77ºF) ±0.001 pH pH Calibration up to five-point calibration, eight standard buffers and five custom buffers mV Range -2000.0 to 2000.0 mV mV Resolution 0.1 mV mV Accuracy (@25ºC/77ºF) ±0.1 mV mV Calibration single-point offset ISE Range 1•10⁻⁶ to 9.99•10¹⁰ ISE Resolution 1; 0.1; 0.01 ISE Accuracy ±0.5% monovalent; ±1% divalent ISE Calibration up to five-point calibration, seven standard solutions and five user-defined standards Temperature Range -5.0 to 105.0°C; 23.0 to 221.0°F; 268.2 to 378.2K Temperature Resolution 0.1°C; 0.1°F; 0.1K Temperature Accuracy (@25ºC/77ºF) ±0.1°C; ±0.2°F; ±0.1K, excluding probe error Temperature Compensation manual (MTC) or automatic (ATC) Programmable Stirrer propeller type, 100 to 2500 rpm, resolution 100 rpm Display 5.7” (320 x 240 pixel) backlit color LCD Burette Sizes 5, 10, 25, and 50 mL Burette Resolution 1/40000 Display Resolution 0.001 mL Dosing Accuracy ±0.1% of full burette volume Methods up to 100 methods (standard and user-defined) Logging Data up to 100 titration and pH/mV/ISE reports Burette Auto-Detection burette size is automatically recognized when inserted into the unit Flow Rate user-selectable from 0.1 mL/min to 2 x burette volume/min Endpoint Determination equivalence point (1st or 2nd derivative) or fixed pH/mV value Potentiometric Titrations acid/base (pH or mV-mode), redox, precipitation, complexometric, non-aqueous, ion-selective, argentometric Measurement Units user-specified expression of concentration units to suit specific calculation requirements Real-Time & Stored Graphs mV-volume or pH-volume titration curve, 1st derivative curve or 2nd derivative curve; pH mode, mV mode or ISE mode: pH/mV/concentration versus time USB Host (Side) flash drive compatibility for transfer of methods and reports Peripherals (Rear) connections for VGA display, PC-keyboard, parallel printer, USB device input, RS232, interface for autosampler GLP Conformity instrumentation data storage and printing capabilities Languages English, Portuguese, Spanish Operating Environment 10 to 40°C (50 to 104°F), up to 95% RH Storage Environment -20 to 70°C (-4 to 158°F), up to 95% RH Power Supply 100-240 VAC; "-01" models, US plug (type A); "-02" models, European plug (type C) Dimensions 390 x 350 x 380 mm (15.3 x 13.8 x 14.9 in) Weight approximately 9 kg (20 lbs.) (with one pump, stirrer and sensors) Ordering Information HI902C1-01 titrator with one analog board, overhead propeller stirrer with stand, 25 mL glass burette, dosing pump drive, temperature sensor, USB cable, 256 Mb USB flash drive and PC software. HI902C2-01 titrator with two analog boards, overhead propeller stirrer with stand, 25 mL glass burette, dosing pump, temperature sensor, USB cable, 256 Mb USB flash drive and PC software. Warranty 2 years
