Total Hardness and pH Portable Photometer$235.00
Note: Limited Quantities Available, While Supplies Last

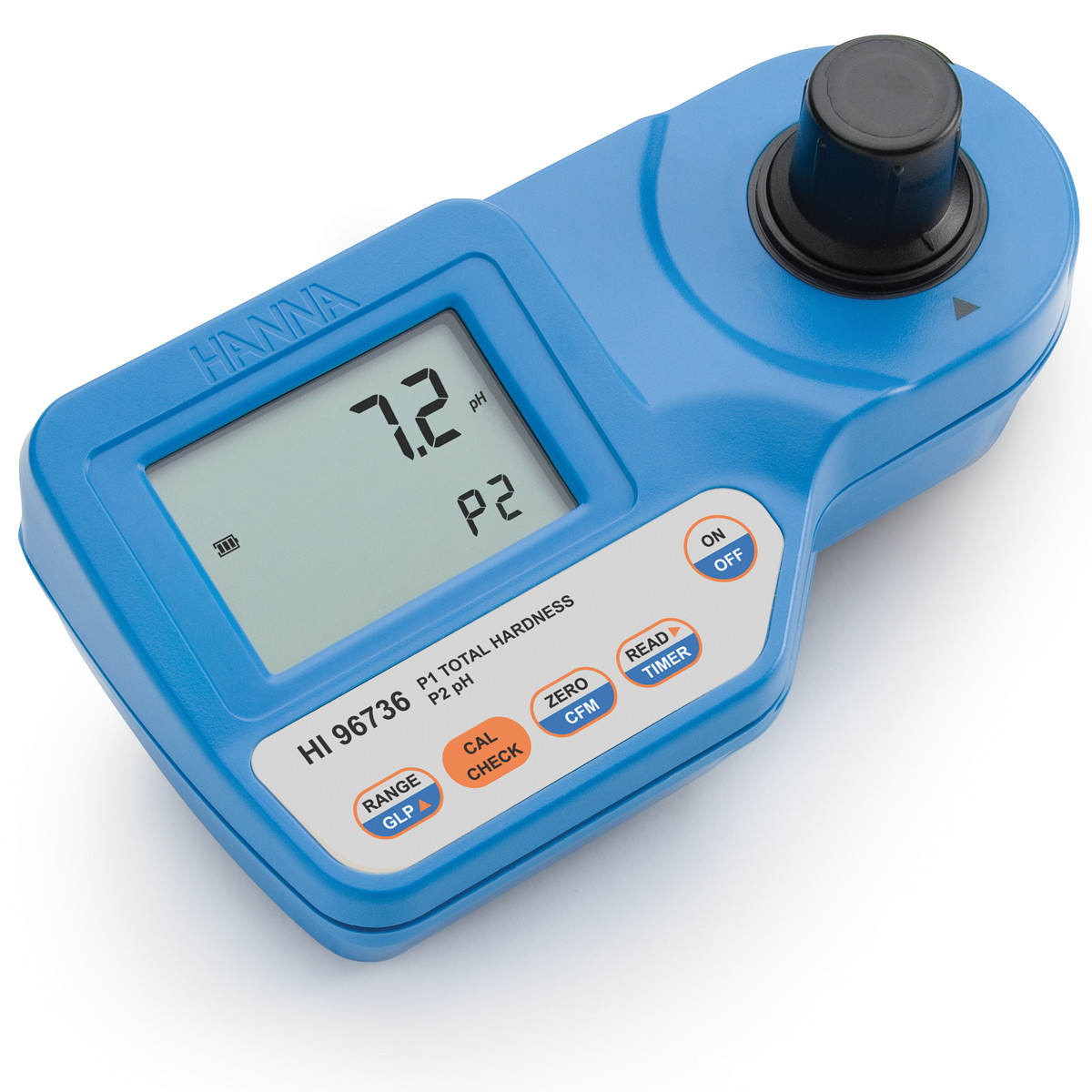

The HI96736 Total Hardness and pH Portable Photometer combines accuracy and ease of use in an ergonomic, portable design. A user can accurately determine these two parameters using ready made reagents. The HI96736 offers many advanced features including the exclusive CAL Check™ function used for performance verification and calibration of the meter.
- CAL Check™ Validation and Calibration
- Built-in Timer
- Automatic Shut Off
Thank you for your interest in our products. A representative will contact you within the next 2 hours.
The HI96736 portable photometer is for the measurement of total hardness and pH. Hanna's portable photometers feature an advanced optical system; the combination of a special tungsten lamp, a narrow band interference filter, and silicon photodetector ensure accurate photometric readings every time. The Hanna exclusive CAL Check™ feature utilizes ready-made, NIST traceable standards to verify both meter validation and calibration. The exclusive cuvette locking system ensures that the cuvette is inserted into the measurement cell in the same position every time to maintain a consistent path length.
CAL Check™ - Allows for performance verification and calibration of the meter using a CAL Check NIST traceable secondary standard.
GLP - Records the date of the last user calibration performed.
Built in timer - Allows the use of a timer to ensure the appropriate 3 minutes and 30 seconds reaction time is used for the chemical reaction. At the end of the timer countdown the meter will automatically take the reading. This feature ensures consistency across multiple users.
Indexing indent on meter - The meter has an indent that allows for a lock and key fit with the cuvette cap. This ensures that the cuvette is indexed consistently (same position) in order to maintain the same path length for accurate results.
Cooling Lamp Indicator - It is necessary to maintain a consistent temperature of the optical components in order to maintain a narrow wavelength band of light. This photometer has a cooling lamp indicator that is displayed for a short period of time before each measurement in order to allow the components to cool and obtain the highest accuracy possible.
Error messages - Messages on display alerting to problems including no cap, over range and under range readings, and light source error.
Auto-shut off - Automatic shut off after 10 minutes of non-use when the meter is in measurement mode. Prevents wastage of batteries in the event the meter is accidentally not turned off.
Battery status indicator
The instrument has a battery level indicator to display remaining life as follows:
- 3 lines for 100 % capacity
- 2 lines for 66 % capacity
- 1 line for 33 % capacity
- Battery icon blinks when the capacity is less than 10 %.
Units of measure - Appropriate unit of measure is displayed along with reading.
The HI96736 measures two important water quality parameters: pH and total hardness. Total hardness refers to the presence of magnesium and calcium. Hardness from magnesium and calcium is due mainly to runoff water dissolving these salts as it flows or filters through different layers of strata. Hardness can also cause scaling of pipes in cooling and heating systems.
The HI96736 offers two methods within one meter. pH determination uses the phenol red method; total hardness uses an adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th Edition, colorimetric method.
When the appropriate reagent is added to the sample, it will display a color change; the greater the concentration, the deeper the color. The associated color change is then colorimetrically analyzed according to the Beer-Lambert Law. This principle states that light is absorbed by a complementary color, and the emitted radiation is dependent upon concentration. For determination of pH and total hardness, a narrow band interference filter at 525 nm (green) allows only green light to be detected by the silicon photodetector and omits all other visible light emitted from the tungsten lamp. As the change in color of the reacted sample increases, absorbance of the specific wavelength of light also increases, while transmittance decreases.
CAL Check™ standards with certificate
The CAL Check™standards are used for calibration and performance verification of photometers with the CAL Check™ function. Individual sets of CAL Check™ standards are available for the HI96736:
- pH: HI96710-11
- Total Hardness: HI96719-11
Supplied with Certificate of Analysis
- Lot number
- Expiration date
- Standard value @ 25°C
- Reference meter NIST traceable
Provided storage containers
- Light tight
- Protects from accidental breakage
Specification Name Detail sku HI96736 Hardness, Total Range 0.00 to 4.70 mg/L (ppm) Hardness, Total Resolution 0.01 mg/L Hardness, Total Accuracy ±0.11 mg/L ±5% of reading Hardness, Total Method adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th Edition, colorimetric method pH Range 6.5 to 8.5 pH pH Resolution 0.1 pH pH Accuracy ±0.1 pH pH Method Phenol Red method Light Source tungsten lamp Light Detector silicon photocell Power Supply 9V battery Auto-off after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode; with last reading reminder Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing Dimensions 192 x 104 x 69 mm (7.6 x 4.1 x 2.7”) Weight 320g (11.3 oz.) Warranty 2 years
