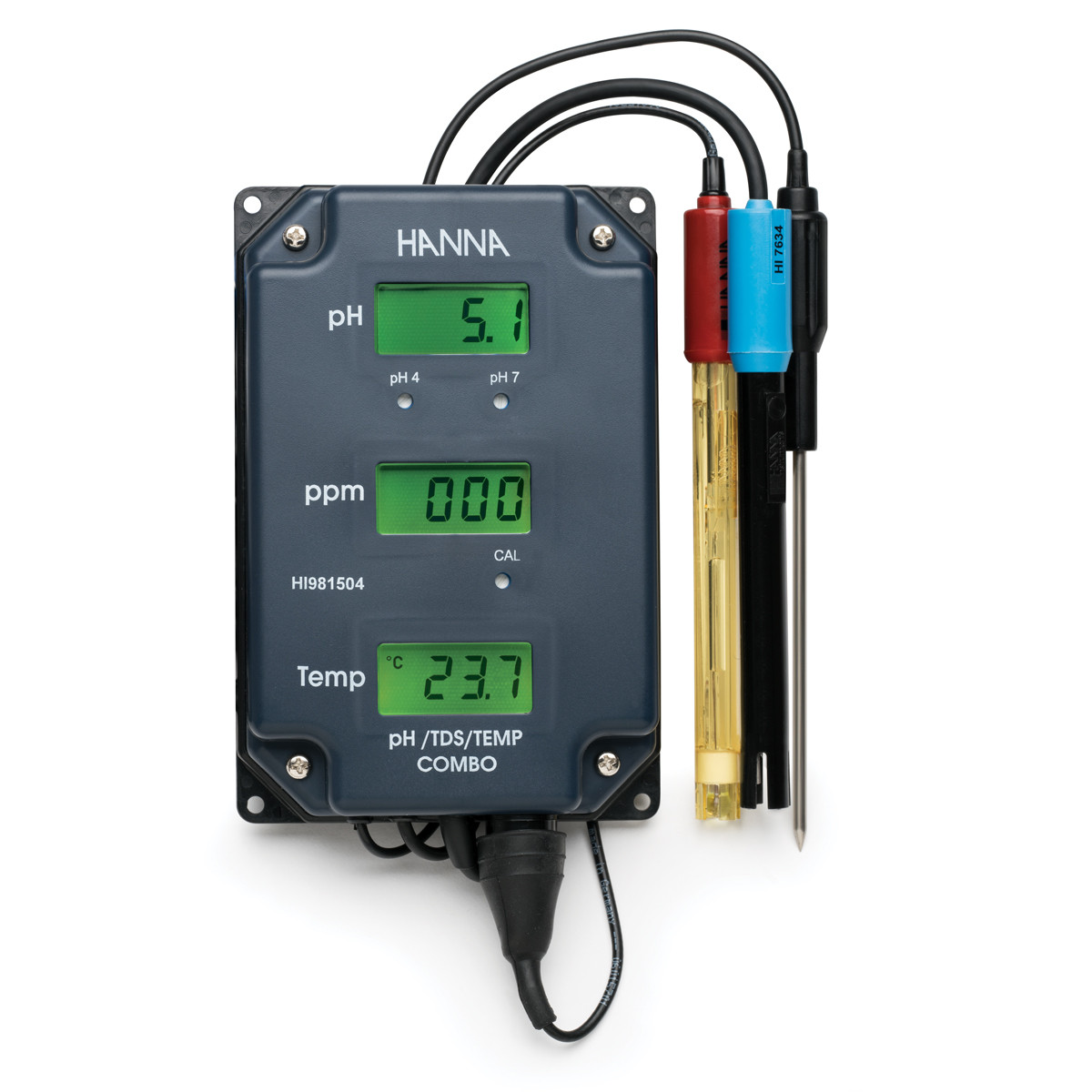

The HI-981504 offers continuous measurement of pH, TDS and temperature, simultaneously displayed on one display.
- Backlit, graphic LCD display
- Automatic temperature compensation (ATC)
- Great for hydroponics, aquariums, pools, & ponds.
Thank you for your interest in our products. A representative will contact you within the next 2 hours.
Set-up for the HI981504 is simple; install the HI981504 near the sample to be tested, plug the indicator in, and immerse the probes. pH, TDS and temperature measurements will be simultaneously displayed on three backlit LCDs.
Users can easily select the temperature unit (°C or °F) on the back panel.
The HI1286 gel-filled pH electrode is provided with a waterproof sleeve to protect the BNC connector. The unique design of the electrode provides longer life in aggressive solutions. The HI7634 TDS probe is easy to clean and requires little maintenance. Measurements are accurate and the meter can be calibrated at one or two points for pH and at a single point for TDS. Temperature is factory-calibrated.
Specification Name Detail SKU HI981504 pH Ranges 0.0 to 14.0 pH Resolution 0.1 pH Accuracy (@25°C/77°F) ±0.2 pH Calibration manual, two-point through trimmers TDS Range 0 to 1990 ppm TDS Resolution 10 ppm TDS Accuracy ±2% F.S TDS Calibration manual, one-point through trimmer EC/TDS Temperature Compensation automatic from 5 to 50°C (41 to 122°F), for TDS readings only EC to TDS Conversion Factor HI981504/5: 0.5; HI981504/7: 0.7 Temperature Range -10.0 to 60.0°C or -14.0 to 140.0°F Temperature Resolution 0.1°C or 0.1°F Temperature Accuracy ±0.3°C or ±0.5°F pH Electrode pH: HI1286 PEI body pH electrode with 2 m (6.6’) cable (included) EC/TDS Probe TDS: HI7634 TDS probe (fixed) Temperature Probe temperature: stainless steel with 2 m cable (fixed) Power Supply 12 VDC adapter (included) Dimensions 0 to 50°C (32 to 122°F); 95% RH Weight 160 x 110 x 35 mm (6.3 x 4.3 x 1.4”)/560 g (1.2 lbs.) Ordering Information HI981504/5-1 (115V) and HI981504/5-2 (230V) are supplied with HI1286 pH electrode, HI7634 TDS probe (fixed), temperature probe (fixed), HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI70032 1382 ppm calibration solution sachet, HI700661 electrode cleaning solution sachet (2), screwdriver, 12 VDC adapter and instructions. HI981504/7-1 (115V) and HI981504/7-2 (230V) are supplied with HI1286 pH electrode, HI7634 TDS probe (fixed), temperature probe (fixed), HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI70442 1500 ppm calibration solution sachet, HI700661 electrode cleaning solution sachet (2), screwdriver, 12 VDC adapter and instructions Warranty 1 year
